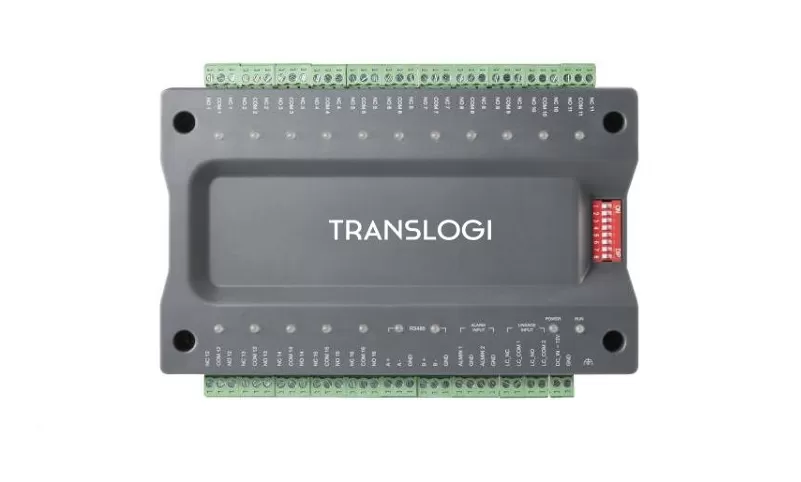

    Distributed Elevator Controller
    Distributed Elevator Controller

    Distributed Elevator Controller

    TR-ACS-K20016M

    Key Features

    • Distributed elevator controller
    • Connectable with up to 16 relays to control floor buttons in the elevator
    • RS-485 communication with the master elevator controller
    • DIP switch settings for device address and relay types
    • Up to 8 distributed elevator controllers can be linked to the master elevator controller
    • Three types of relays are supported: Button Relay, Call Elevator Relay and Auto Button Relay
    • DIP switch settings for device address and relay types.
    • Supports 3 relay types: Call Elevator, Button, and Auto Button
    • Supports master elevator controller linkage, reporting the event to the system.
    Acess Control

    Introduction

    The elevator controller consists of a main controller and distributed controllers, making it suitable for buildings, public areas, and similar applications. The distributed controller communicates with the main controller and relays via RS-485 to ensure stable floor control and status feedback. TR-ACS-K20016M acts as the relay extension module, providing multiple relay outputs to control additional floors or expand elevator capacity with ease.



    Specifications

    I/O interface



    General



    Note: Specifications are subject to change without notice.

    Download the complete product documentation below. ↓





    Tải xuống 4-translogi-tr-acs-k20016m-distributed-elevator-controller-datasheet.pdf
