Introduction
The TR-WIA-PM812O-H is a wired zone expander designed for hybrid intrusion control panels. It offers 8 on-board input zones and 2 on-board collector outputs to increase the system capacity. The expander connects to the control panel using a high-speed communication bus, supporting cable lengths of up to 900 meters. It also features an additional bus output for daisy-chaining another expander, allowing an extra 900 meters of cabling. With its reliable wired communication and flexible expansion capability, this module is well-suited for small to medium-sized installations such as villas, shops, offices, hotels, and similar applications.
Specifications

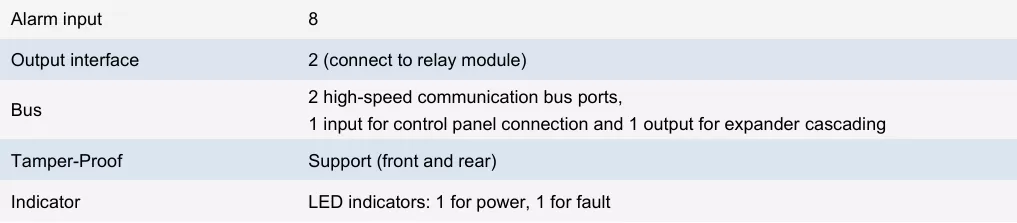

I/O Interfaces

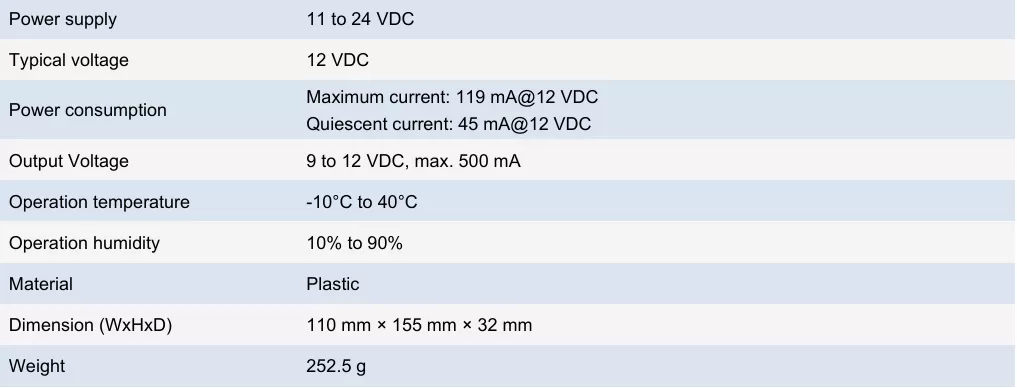

General
Note: Specifications are subject to change without notice.
Download the complete product documentation below. ↓
